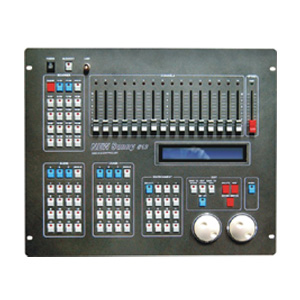

512 console
DETAIL INFO
Technical parameters
DMX512/1990 standard, 512 DMX control channel.
A controlled amount of 32 channels of the channel number, total 512 channels.
Can be run at the same time four procedures and 48 scenes.
Can control the amount of the number of flexible configuration:
51 units, such as "10 channels / 42 sets of 12 channels,
16 channel / 32, 18 channels / 28 units,
24 channels / 21, 28 channel,
32 channel / 16 sets)
Switch in both Chinese and English, a new electronic instruction function
Control table shape size/weight: 580 * 400 * 150 mm / 7.6 kg
The carton packing size/weight: 685 * 493 * 202 mm / 9.7 kg
Air box packing size/weight: 680 * 490 * 250 mm / 17.6 kg
International standard signal of DMX512 output;
Controlling the channels of computer lights(1-32channels can be set )the
design of the control console is up to you
High performance green switched power inside. Extraordinary large voltage
range fit for the requirement of all over the countries.(90V-240V)
New electric-instruction ,you can use it immediately;
Suit for small &middle & big performance occasions;
Multi –language display system (Chinese & English) to meet the demand
the customers;
Outline size ：580mm×400mm×150mm
Comfortable, operational-layout ,simple operational popular operation model
Packing size ：685mm×493mm×202mm
N.W :7.6kg G.W :9.7kg
