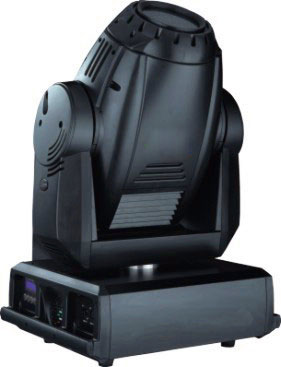

1200 w moving head light,

Technical parameters:

Model: Jhon - 002

Bulb: 1200 w short arc gas discharge

Lamp holder: GY - 22

Available models: PHILIPS HMI1200

The rectifier: electromagnetic ballast

Power supply: 208/230/250 v, 50 hz, 208/230 v, 60 hz

Power: 1500 w, 220 v / 50 hz

The biggest environmental temperature: 40 ℃ (104 ° F)

The maximum surface temperature; 135 ℃ (275 ° F)

Size: 619 x536x616 (mm)

: net weight 50 kg

Gross weight: 83 kg (including air box)

The performance characteristics of

Communication protocol: DMX - 512

The control channel: 18 ch

Display: LCD display pattern

Horizontal/vertical accuracy: 8 or 16 bit

Design positioning: 8 or 16 bit

Prism location: 8 or 16 bit

Mobile control: track and vector

Data input/output: 3 core

Green: 0-100% magenta: 0-100%

Huang: 0-100% CTO: 0-100%

Color wheel: six replaceable color + white light

Pattern wheel 1:6 a replaceable glass + white light

Pattern wheel and a replaceable glass + white light

Pattern size: 37 mm

Aperture: electric, linear

Effect of wheel: 4 replaceable prism and effect + white light

Atomization effect: independence, adjustable

That move light/stroboscopic: linear dimming and adjustable speed stroboscopic

Level: 530 vertical: 530 degrees
